<p>\[\begin{align}<br />v_{F}&amp;=-2,17 \mathrm{~mm} \\<br />w_{F}&amp;=1,61 \mathrm{~mm} <br />\end{align}\]</p>

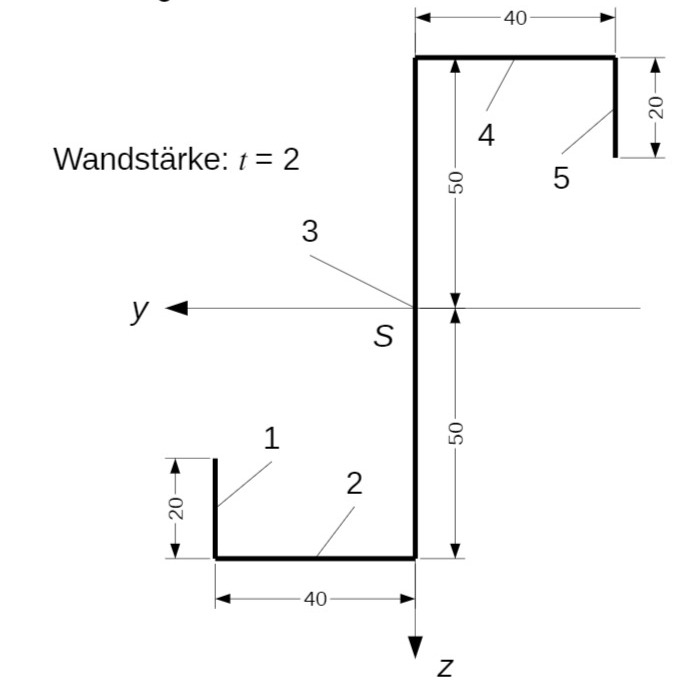

<p>Tabelle zu den Werten der Teilprofile</p>


<p>\begin{array}{|c|ccccc|r|l|} \hline &amp; \text { Profil 1 } &amp; \text { Profil 2 } &amp; \text { Profil 3 } &amp; \text { Profil 4 } &amp; \text { Profil 5 } &amp; \text { Summe } &amp; \\ \hline A_{i} &amp; 40 &amp; 80 &amp; 200 &amp; 80 &amp; 40 &amp; 440 &amp; \mathrm{~mm}^{2} \\ y_{S i} &amp; 40 &amp; 20 &amp; 0 &amp; -20 &amp; -40 &amp; &amp; \mathrm{~mm} \\ z_{S i} &amp; 40 &amp; 50 &amp; 0 &amp; -50 &amp; -40 &amp; &amp; \mathrm{~mm} \\ \hline I_{Y i} &amp; 1333 &amp; 0 &amp; 166700 &amp; 0 &amp; 1333 &amp; 169400 &amp; \mathrm{~mm}^{4} \\ I_{Z i} &amp; 0 &amp; 10670 &amp; 0 &amp; 10670 &amp; 0 &amp; 21340 &amp; \mathrm{~mm}^{4} \\ \hline A_{i} &amp; 64000 &amp; 200000 &amp; 0 &amp; 200000 &amp; 64000 &amp; 528000 &amp; \mathrm{~mm}^{4} \\ y_{S i}^{2} A_{i} &amp; 64000 &amp; 32000 &amp; 0 &amp; 32000 &amp; 64000 &amp; 192000 &amp; \mathrm{~mm}^{4} \\ -y_{S i} z_{S i} A_{i} &amp; -64000 &amp; -80000 &amp; 0 &amp; -80000 &amp; -64000 &amp; -288000 &amp; \mathrm{~mm}^{4} \\ \hline \end{array}</p>


<p>\[<br />\begin{aligned}<br />&amp; I_{y}=169400+528000 \mathrm{~mm}^{4}=69,74 \mathrm{~cm}^{4} \\<br />&amp; I_{z}=21340+192000 \mathrm{~mm}^{4}=21,33 \mathrm{~cm}^{4} \\<br />&amp; I_{y z}=-28,80 \mathrm{~cm}^{4}<br />\end{aligned}</p>


<p>\[<br />\begin{aligned}<br />\sum M^{B} &amp;=0:-L A_{z}+\frac{L}{2} F=0 \\<br />&amp; \Rightarrow A_{z}=\frac{F}{2} \\\\<br />\sum M^{A} &amp;=0:-\frac{L}{2} F+L B_{z}=0 \\<br />&amp; \Rightarrow B_{z}=\frac{F}{2}<br />\end{aligned}</p>


<p>\begin{align}<br />Q_{z}(x)=-\left(-A_{z}+\left\langle x-\frac{L}{2}\right\rangle^{0} F\right)=F\left(\frac{1}{2}-\left\langle\frac{x}{L}-\frac{1}{2}\right\rangle^{0}\right) <br />\end{align}</p>


<p>\begin{align}<br />M_{y}(x)=F\left(\frac{x}{2}-L\left\langle\frac{x}{L}-\frac{1}{2}\right\rangle\right)=\frac{F L}{2}\left(\frac{x}{L}-\left\langle2 \frac{x}{L}-1\right\rangle\right) <br />\end{align}</p>


<p>\begin{align}<br />\bar{M}_{y}&amp;=\frac{1}{1-I_{y z}^{2} /\left(I_{y} I_{z}\right)} M_{y} \\\\ \bar{M}_{z}&amp;=-\frac{I_{y z} / I_{y}}{1-I_{y z}^{2} /\left(I_{y} I_{z}\right)} M_{y}=-\frac{I_{y z}}{I_{y}} \bar{M}_{y} <br />\end{align}</p>


<p>\begin{align}<br />E I_{y} \frac{d^{2} w}{d x^{2}}&amp;=-\bar{M}_{y}=\frac{-F L}{2\left(1-I_{y z}^{2} /\left(I_{y} I_{z}\right)\right)}\left[\frac{x}{L}-\left\langle 2 \frac{x}{L}-1\right\rangle\right]\\\\<br />E I_{y} \frac{d w}{d x}&amp;=\frac{-F L^{2}}{2\left(1-I_{y z}^{2} /\left(I_{y} I_{z}\right)\right)}\left[\frac{1}{2} \frac{x^{2}}{L^{2}}-\frac{1}{4}\left\langle 2 \frac{x}{L}-1\right\rangle^{2}+c_{1}\right] \\\\<br />E I_{y} w&amp;=\frac{-F L^{3}}{2\left(1-I_{y z}^{2} /\left(I_{y} I_{z}\right)\right)}\left[\frac{1}{6} \frac{x^{3}}{L^{3}}-\frac{1}{24}\left\langle 2 \frac{x}{L}-1\right \rangle^{3}+c_{1} x+c_{2}\right]<br />\end{align}</p>


<p>\begin{align}<br />w(0)&amp;=0 \quad \Rightarrow c_{2}=0 \\\\<br />w(L)&amp;=0: \quad  \frac{1}{6}-\frac{1}{24}+c_{1} L=0 \quad \Rightarrow c_{1}=-\frac{3}{24} \frac{1}{L}=-\frac{1}{8 L} <br />\end{align}</p>


<p>\begin{align}<br />w(x)=-\frac{1}{1-I_{y z}^{2} /\left(I_{y} I_{z}\right)} \frac{F L^{3}}{48 E I_{y}}\left[4\left(\frac{x}{L}\right)^{3}-\left\langle2 \frac{x}{L}-1\right\rangle^{3}-3 \frac{x}{L}\right] <br />\end{align}</p>


<p>\begin{align}<br />w_{F}=w\left(\frac{L}{2}\right)&amp;=-\frac{1}{1-I_{y z}^{2} /\left(I_{y} I_{z}\right)} \frac{F L^{3}}{48 E I_{y}}\left(\frac{4}{2^{3}}-\frac{3}{2}\right) \\\\<br />&amp;=\frac{1}{1-I_{y z}^{2} /\left(I_{y} I_{z}\right)} \frac{F L^{3}}{48 E I_{y}} <br />\end{align}</p>


<p>Da die Randbedingungen für die Verschiebung \( v(x) \) mit denen für die Verschiebung \( w(x) \) übereinstimmen, gilt:</p>


<p>Da die Randbedingungen für die Verschiebung <mjx-container class="MathJax" jax="SVG"><svg alt=" v(x) " style="vertical-align: -0.566ex" xmlns="http://www.w3.org/2000/svg" width="4.152ex" height="2.262ex" role="img" focusable="false" viewBox="0 -750 1835 1000" xmlns:xlink="http://www.w3.org/1999/xlink"><defs><path id="MJX-698-TEX-I-1D463" d="M173 380Q173 405 154 405Q130 405 104 376T61 287Q60 286 59 284T58 281T56 279T53 278T49 278T41 278H27Q21 284 21 287Q21 294 29 316T53 368T97 419T160 441Q202 441 225 417T249 361Q249 344 246 335Q246 329 231 291T200 202T182 113Q182 86 187 69Q200 26 250 26Q287 26 319 60T369 139T398 222T409 277Q409 300 401 317T383 343T365 361T357 383Q357 405 376 424T417 443Q436 443 451 425T467 367Q467 340 455 284T418 159T347 40T241 -11Q177 -11 139 22Q102 54 102 117Q102 148 110 181T151 298Q173 362 173 380Z"></path><path id="MJX-698-TEX-N-28" d="M94 250Q94 319 104 381T127 488T164 576T202 643T244 695T277 729T302 750H315H319Q333 750 333 741Q333 738 316 720T275 667T226 581T184 443T167 250T184 58T225 -81T274 -167T316 -220T333 -241Q333 -250 318 -250H315H302L274 -226Q180 -141 137 -14T94 250Z"></path><path id="MJX-698-TEX-I-1D465" d="M52 289Q59 331 106 386T222 442Q257 442 286 424T329 379Q371 442 430 442Q467 442 494 420T522 361Q522 332 508 314T481 292T458 288Q439 288 427 299T415 328Q415 374 465 391Q454 404 425 404Q412 404 406 402Q368 386 350 336Q290 115 290 78Q290 50 306 38T341 26Q378 26 414 59T463 140Q466 150 469 151T485 153H489Q504 153 504 145Q504 144 502 134Q486 77 440 33T333 -11Q263 -11 227 52Q186 -10 133 -10H127Q78 -10 57 16T35 71Q35 103 54 123T99 143Q142 143 142 101Q142 81 130 66T107 46T94 41L91 40Q91 39 97 36T113 29T132 26Q168 26 194 71Q203 87 217 139T245 247T261 313Q266 340 266 352Q266 380 251 392T217 404Q177 404 142 372T93 290Q91 281 88 280T72 278H58Q52 284 52 289Z"></path><path id="MJX-698-TEX-N-29" d="M60 749L64 750Q69 750 74 750H86L114 726Q208 641 251 514T294 250Q294 182 284 119T261 12T224 -76T186 -143T145 -194T113 -227T90 -246Q87 -249 86 -250H74Q66 -250 63 -250T58 -247T55 -238Q56 -237 66 -225Q221 -64 221 250T66 725Q56 737 55 738Q55 746 60 749Z"></path></defs><g stroke="currentColor" fill="currentColor" stroke-width="0" transform="scale(1,-1)"><g data-mml-node="math"><g data-mml-node="mi"><use data-c="1D463" xlink:href="#MJX-698-TEX-I-1D463"></use></g><g data-mml-node="mo" transform="translate(485,0)"><use data-c="28" xlink:href="#MJX-698-TEX-N-28"></use></g><g data-mml-node="mi" transform="translate(874,0)"><use data-c="1D465" xlink:href="#MJX-698-TEX-I-1D465"></use></g><g data-mml-node="mo" transform="translate(1446,0)"><use data-c="29" xlink:href="#MJX-698-TEX-N-29"></use></g></g></g></svg></mjx-container> mit denen für die Verschiebung <mjx-container class="MathJax" jax="SVG"><svg alt=" w(x) " style="vertical-align: -0.566ex" xmlns="http://www.w3.org/2000/svg" width="4.674ex" height="2.262ex" role="img" focusable="false" viewBox="0 -750 2066 1000" xmlns:xlink="http://www.w3.org/1999/xlink"><defs><path id="MJX-699-TEX-I-1D464" d="M580 385Q580 406 599 424T641 443Q659 443 674 425T690 368Q690 339 671 253Q656 197 644 161T609 80T554 12T482 -11Q438 -11 404 5T355 48Q354 47 352 44Q311 -11 252 -11Q226 -11 202 -5T155 14T118 53T104 116Q104 170 138 262T173 379Q173 380 173 381Q173 390 173 393T169 400T158 404H154Q131 404 112 385T82 344T65 302T57 280Q55 278 41 278H27Q21 284 21 287Q21 293 29 315T52 366T96 418T161 441Q204 441 227 416T250 358Q250 340 217 250T184 111Q184 65 205 46T258 26Q301 26 334 87L339 96V119Q339 122 339 128T340 136T341 143T342 152T345 165T348 182T354 206T362 238T373 281Q402 395 406 404Q419 431 449 431Q468 431 475 421T483 402Q483 389 454 274T422 142Q420 131 420 107V100Q420 85 423 71T442 42T487 26Q558 26 600 148Q609 171 620 213T632 273Q632 306 619 325T593 357T580 385Z"></path><path id="MJX-699-TEX-N-28" d="M94 250Q94 319 104 381T127 488T164 576T202 643T244 695T277 729T302 750H315H319Q333 750 333 741Q333 738 316 720T275 667T226 581T184 443T167 250T184 58T225 -81T274 -167T316 -220T333 -241Q333 -250 318 -250H315H302L274 -226Q180 -141 137 -14T94 250Z"></path><path id="MJX-699-TEX-I-1D465" d="M52 289Q59 331 106 386T222 442Q257 442 286 424T329 379Q371 442 430 442Q467 442 494 420T522 361Q522 332 508 314T481 292T458 288Q439 288 427 299T415 328Q415 374 465 391Q454 404 425 404Q412 404 406 402Q368 386 350 336Q290 115 290 78Q290 50 306 38T341 26Q378 26 414 59T463 140Q466 150 469 151T485 153H489Q504 153 504 145Q504 144 502 134Q486 77 440 33T333 -11Q263 -11 227 52Q186 -10 133 -10H127Q78 -10 57 16T35 71Q35 103 54 123T99 143Q142 143 142 101Q142 81 130 66T107 46T94 41L91 40Q91 39 97 36T113 29T132 26Q168 26 194 71Q203 87 217 139T245 247T261 313Q266 340 266 352Q266 380 251 392T217 404Q177 404 142 372T93 290Q91 281 88 280T72 278H58Q52 284 52 289Z"></path><path id="MJX-699-TEX-N-29" d="M60 749L64 750Q69 750 74 750H86L114 726Q208 641 251 514T294 250Q294 182 284 119T261 12T224 -76T186 -143T145 -194T113 -227T90 -246Q87 -249 86 -250H74Q66 -250 63 -250T58 -247T55 -238Q56 -237 66 -225Q221 -64 221 250T66 725Q56 737 55 738Q55 746 60 749Z"></path></defs><g stroke="currentColor" fill="currentColor" stroke-width="0" transform="scale(1,-1)"><g data-mml-node="math"><g data-mml-node="mi"><use data-c="1D464" xlink:href="#MJX-699-TEX-I-1D464"></use></g><g data-mml-node="mo" transform="translate(716,0)"><use data-c="28" xlink:href="#MJX-699-TEX-N-28"></use></g><g data-mml-node="mi" transform="translate(1105,0)"><use data-c="1D465" xlink:href="#MJX-699-TEX-I-1D465"></use></g><g data-mml-node="mo" transform="translate(1677,0)"><use data-c="29" xlink:href="#MJX-699-TEX-N-29"></use></g></g></g></svg></mjx-container> übereinstimmen, gilt:</p>


<p>\begin{align}<br />E I_{z} \frac{d^{2} v}{d x^{2}}=\bar{M}_{z}=-\frac{I_{y z}}{I_{y}} \bar{M}_{y} <br />\end{align}</p>


<p>\begin{align}<br />E I_{z} v(x)=-\frac{I_{y z}}{I_{y}} \frac{F L^{3}}{2\left(1-I_{y z}^{2} /\left(I_{y} I_{z}\right)\right)}\left[\frac{1}{6} \frac{x^{3}}{L^{3}}-\frac{1}{24}\left\langle 2 \frac{x}{L}-1\right\rangle^{3}-\frac{1}{8} \frac{x}{L}\right]<br />\end{align}</p>


<p>\begin{align}<br />v(x)=-\frac{I_{y z}}{I_{y}} \frac{F L^{3}}{48 E I_{z}}\left[4\left(\frac{x}{L}\right)^{3}-\left\langle x \frac{x}{L}-1\right\rangle^{3}-3 \frac{x}{L}\right]=\frac{I_{y z}}{I_{z}} w(x)<br />\end{align}</p>


<p>\begin{align}<br />v_{F}=v\left(\frac{L}{2}\right)=\frac{I_{y z}}{I_{z}} w_{F} <br />\end{align}</p>


<p>\begin{align}<br />1-\frac{I_{y z}^{2}}{I_{y} I_{z}}=1-\frac{28,80^{2}}{69,74 \cdot 21,33}=0,4424 <br />\end{align}</p>


<p>\begin{align}<br />\frac{F L^{3}}{48 E I_{y}}=\frac{5 \cdot 10^{3} \mathrm{~N} \cdot 1000^{3} \mathrm{~mm}^{3}}{48 \cdot 2,1 \cdot 10^{5} \mathrm{~N} / \mathrm{mm}^{2} \cdot 69,74 \cdot 10^{4} \mathrm{~mm}^{4}}=0,7113 \mathrm{~mm} <br />\end{align}</p>


<p>\begin{align}<br />w_{F}=\frac{0,7113 \mathrm{~mm}}{0,4424}=1,608 \mathrm{~mm}<br />\end{align}</p>


<p>\begin{align}<br />v_{F}=\frac{-28,80}{21,33} \cdot 1,608 \mathrm{~mm}=-2,171 \mathrm{~mm} <br />\end{align}</p>

<p><img style="width: 100%;" src="https://storage.googleapis.com/max-academy-image-bucket/60309ea199dd3d08822199df.png" alt="Abbildung" /></p>

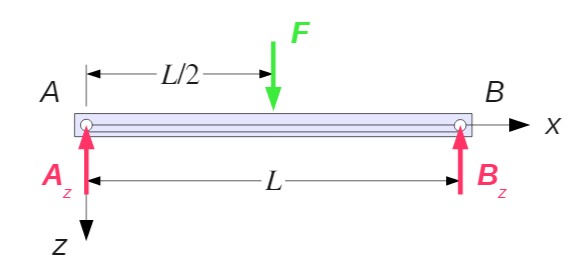

<p>Der abgebildete Balken ist an beiden Enden gelenkig gelagert. In der Mitte greift die Kraft \( F \) an. Gesucht sind die Verschiebungen \( v_{F} \) und \( w_{F} \) des Lastangriffspunkts.<br /><strong>Gegeben:</strong> \( E=210000 \mathrm{MPa}, \ F=5 \mathrm{kN} \)</p>

<p><img style="width: 100%;" src="https://storage.googleapis.com/max-academy-image-bucket/60309ea199dd3d08822199df.png" alt="Abbildung" /></p>
<p>Der abgebildete Balken ist an beiden Enden gelenkig gelagert. In der Mitte greift die Kraft <mjx-container class="MathJax" jax="SVG"><svg alt=" F " style="vertical-align: 0" xmlns="http://www.w3.org/2000/svg" width="1.695ex" height="1.538ex" role="img" focusable="false" viewBox="0 -680 749 680" xmlns:xlink="http://www.w3.org/1999/xlink"><defs><path id="MJX-684-TEX-I-1D439" d="M48 1Q31 1 31 11Q31 13 34 25Q38 41 42 43T65 46Q92 46 125 49Q139 52 144 61Q146 66 215 342T285 622Q285 629 281 629Q273 632 228 634H197Q191 640 191 642T193 659Q197 676 203 680H742Q749 676 749 669Q749 664 736 557T722 447Q720 440 702 440H690Q683 445 683 453Q683 454 686 477T689 530Q689 560 682 579T663 610T626 626T575 633T503 634H480Q398 633 393 631Q388 629 386 623Q385 622 352 492L320 363H375Q378 363 398 363T426 364T448 367T472 374T489 386Q502 398 511 419T524 457T529 475Q532 480 548 480H560Q567 475 567 470Q567 467 536 339T502 207Q500 200 482 200H470Q463 206 463 212Q463 215 468 234T473 274Q473 303 453 310T364 317H309L277 190Q245 66 245 60Q245 46 334 46H359Q365 40 365 39T363 19Q359 6 353 0H336Q295 2 185 2Q120 2 86 2T48 1Z"></path></defs><g stroke="currentColor" fill="currentColor" stroke-width="0" transform="scale(1,-1)"><g data-mml-node="math"><g data-mml-node="mi"><use data-c="1D439" xlink:href="#MJX-684-TEX-I-1D439"></use></g></g></g></svg></mjx-container> an. Gesucht sind die Verschiebungen <mjx-container class="MathJax" jax="SVG"><svg alt=" v_{F} " style="vertical-align: -0.339ex" xmlns="http://www.w3.org/2000/svg" width="2.483ex" height="1.342ex" role="img" focusable="false" viewBox="0 -443 1097.6 593" xmlns:xlink="http://www.w3.org/1999/xlink"><defs><path id="MJX-685-TEX-I-1D463" d="M173 380Q173 405 154 405Q130 405 104 376T61 287Q60 286 59 284T58 281T56 279T53 278T49 278T41 278H27Q21 284 21 287Q21 294 29 316T53 368T97 419T160 441Q202 441 225 417T249 361Q249 344 246 335Q246 329 231 291T200 202T182 113Q182 86 187 69Q200 26 250 26Q287 26 319 60T369 139T398 222T409 277Q409 300 401 317T383 343T365 361T357 383Q357 405 376 424T417 443Q436 443 451 425T467 367Q467 340 455 284T418 159T347 40T241 -11Q177 -11 139 22Q102 54 102 117Q102 148 110 181T151 298Q173 362 173 380Z"></path><path id="MJX-685-TEX-I-1D439" d="M48 1Q31 1 31 11Q31 13 34 25Q38 41 42 43T65 46Q92 46 125 49Q139 52 144 61Q146 66 215 342T285 622Q285 629 281 629Q273 632 228 634H197Q191 640 191 642T193 659Q197 676 203 680H742Q749 676 749 669Q749 664 736 557T722 447Q720 440 702 440H690Q683 445 683 453Q683 454 686 477T689 530Q689 560 682 579T663 610T626 626T575 633T503 634H480Q398 633 393 631Q388 629 386 623Q385 622 352 492L320 363H375Q378 363 398 363T426 364T448 367T472 374T489 386Q502 398 511 419T524 457T529 475Q532 480 548 480H560Q567 475 567 470Q567 467 536 339T502 207Q500 200 482 200H470Q463 206 463 212Q463 215 468 234T473 274Q473 303 453 310T364 317H309L277 190Q245 66 245 60Q245 46 334 46H359Q365 40 365 39T363 19Q359 6 353 0H336Q295 2 185 2Q120 2 86 2T48 1Z"></path></defs><g stroke="currentColor" fill="currentColor" stroke-width="0" transform="scale(1,-1)"><g data-mml-node="math"><g data-mml-node="msub"><g data-mml-node="mi"><use data-c="1D463" xlink:href="#MJX-685-TEX-I-1D463"></use></g><g data-mml-node="TeXAtom" transform="translate(518,-150) scale(0.707)" data-mjx-texclass="ORD"><g data-mml-node="mi"><use data-c="1D439" xlink:href="#MJX-685-TEX-I-1D439"></use></g></g></g></g></g></svg></mjx-container> und <mjx-container class="MathJax" jax="SVG"><svg alt=" w_{F} " style="vertical-align: -0.339ex" xmlns="http://www.w3.org/2000/svg" width="3.006ex" height="1.342ex" role="img" focusable="false" viewBox="0 -443 1328.6 593" xmlns:xlink="http://www.w3.org/1999/xlink"><defs><path id="MJX-686-TEX-I-1D464" d="M580 385Q580 406 599 424T641 443Q659 443 674 425T690 368Q690 339 671 253Q656 197 644 161T609 80T554 12T482 -11Q438 -11 404 5T355 48Q354 47 352 44Q311 -11 252 -11Q226 -11 202 -5T155 14T118 53T104 116Q104 170 138 262T173 379Q173 380 173 381Q173 390 173 393T169 400T158 404H154Q131 404 112 385T82 344T65 302T57 280Q55 278 41 278H27Q21 284 21 287Q21 293 29 315T52 366T96 418T161 441Q204 441 227 416T250 358Q250 340 217 250T184 111Q184 65 205 46T258 26Q301 26 334 87L339 96V119Q339 122 339 128T340 136T341 143T342 152T345 165T348 182T354 206T362 238T373 281Q402 395 406 404Q419 431 449 431Q468 431 475 421T483 402Q483 389 454 274T422 142Q420 131 420 107V100Q420 85 423 71T442 42T487 26Q558 26 600 148Q609 171 620 213T632 273Q632 306 619 325T593 357T580 385Z"></path><path id="MJX-686-TEX-I-1D439" d="M48 1Q31 1 31 11Q31 13 34 25Q38 41 42 43T65 46Q92 46 125 49Q139 52 144 61Q146 66 215 342T285 622Q285 629 281 629Q273 632 228 634H197Q191 640 191 642T193 659Q197 676 203 680H742Q749 676 749 669Q749 664 736 557T722 447Q720 440 702 440H690Q683 445 683 453Q683 454 686 477T689 530Q689 560 682 579T663 610T626 626T575 633T503 634H480Q398 633 393 631Q388 629 386 623Q385 622 352 492L320 363H375Q378 363 398 363T426 364T448 367T472 374T489 386Q502 398 511 419T524 457T529 475Q532 480 548 480H560Q567 475 567 470Q567 467 536 339T502 207Q500 200 482 200H470Q463 206 463 212Q463 215 468 234T473 274Q473 303 453 310T364 317H309L277 190Q245 66 245 60Q245 46 334 46H359Q365 40 365 39T363 19Q359 6 353 0H336Q295 2 185 2Q120 2 86 2T48 1Z"></path></defs><g stroke="currentColor" fill="currentColor" stroke-width="0" transform="scale(1,-1)"><g data-mml-node="math"><g data-mml-node="msub"><g data-mml-node="mi"><use data-c="1D464" xlink:href="#MJX-686-TEX-I-1D464"></use></g><g data-mml-node="TeXAtom" transform="translate(749,-150) scale(0.707)" data-mjx-texclass="ORD"><g data-mml-node="mi"><use data-c="1D439" xlink:href="#MJX-686-TEX-I-1D439"></use></g></g></g></g></g></svg></mjx-container> des Lastangriffspunkts.<br /><strong>Gegeben:</strong> <mjx-container class="MathJax" jax="SVG"><svg alt=" E=210000 \mathrm{MPa}, \ F=5 \mathrm{kN} " style="vertical-align: -0.439ex" xmlns="http://www.w3.org/2000/svg" width="26.585ex" height="2.009ex" role="img" focusable="false" viewBox="0 -694 11750.8 888" xmlns:xlink="http://www.w3.org/1999/xlink"><defs><path id="MJX-687-TEX-I-1D438" d="M492 213Q472 213 472 226Q472 230 477 250T482 285Q482 316 461 323T364 330H312Q311 328 277 192T243 52Q243 48 254 48T334 46Q428 46 458 48T518 61Q567 77 599 117T670 248Q680 270 683 272Q690 274 698 274Q718 274 718 261Q613 7 608 2Q605 0 322 0H133Q31 0 31 11Q31 13 34 25Q38 41 42 43T65 46Q92 46 125 49Q139 52 144 61Q146 66 215 342T285 622Q285 629 281 629Q273 632 228 634H197Q191 640 191 642T193 659Q197 676 203 680H757Q764 676 764 669Q764 664 751 557T737 447Q735 440 717 440H705Q698 445 698 453L701 476Q704 500 704 528Q704 558 697 578T678 609T643 625T596 632T532 634H485Q397 633 392 631Q388 629 386 622Q385 619 355 499T324 377Q347 376 372 376H398Q464 376 489 391T534 472Q538 488 540 490T557 493Q562 493 565 493T570 492T572 491T574 487T577 483L544 351Q511 218 508 216Q505 213 492 213Z"></path><path id="MJX-687-TEX-N-3D" d="M56 347Q56 360 70 367H707Q722 359 722 347Q722 336 708 328L390 327H72Q56 332 56 347ZM56 153Q56 168 72 173H708Q722 163 722 153Q722 140 707 133H70Q56 140 56 153Z"></path><path id="MJX-687-TEX-N-32" d="M109 429Q82 429 66 447T50 491Q50 562 103 614T235 666Q326 666 387 610T449 465Q449 422 429 383T381 315T301 241Q265 210 201 149L142 93L218 92Q375 92 385 97Q392 99 409 186V189H449V186Q448 183 436 95T421 3V0H50V19V31Q50 38 56 46T86 81Q115 113 136 137Q145 147 170 174T204 211T233 244T261 278T284 308T305 340T320 369T333 401T340 431T343 464Q343 527 309 573T212 619Q179 619 154 602T119 569T109 550Q109 549 114 549Q132 549 151 535T170 489Q170 464 154 447T109 429Z"></path><path id="MJX-687-TEX-N-31" d="M213 578L200 573Q186 568 160 563T102 556H83V602H102Q149 604 189 617T245 641T273 663Q275 666 285 666Q294 666 302 660V361L303 61Q310 54 315 52T339 48T401 46H427V0H416Q395 3 257 3Q121 3 100 0H88V46H114Q136 46 152 46T177 47T193 50T201 52T207 57T213 61V578Z"></path><path id="MJX-687-TEX-N-30" d="M96 585Q152 666 249 666Q297 666 345 640T423 548Q460 465 460 320Q460 165 417 83Q397 41 362 16T301 -15T250 -22Q224 -22 198 -16T137 16T82 83Q39 165 39 320Q39 494 96 585ZM321 597Q291 629 250 629Q208 629 178 597Q153 571 145 525T137 333Q137 175 145 125T181 46Q209 16 250 16Q290 16 318 46Q347 76 354 130T362 333Q362 478 354 524T321 597Z"></path><path id="MJX-687-TEX-N-4D" d="M132 622Q125 629 121 631T105 634T62 637H29V683H135Q221 683 232 682T249 675Q250 674 354 398L458 124L562 398Q666 674 668 675Q671 681 683 682T781 683H887V637H854Q814 636 803 634T785 622V61Q791 51 802 49T854 46H887V0H876Q855 3 736 3Q605 3 596 0H585V46H618Q660 47 669 49T688 61V347Q688 424 688 461T688 546T688 613L687 632Q454 14 450 7Q446 1 430 1T410 7Q409 9 292 316L176 624V606Q175 588 175 543T175 463T175 356L176 86Q187 50 261 46H278V0H269Q254 3 154 3Q52 3 37 0H29V46H46Q78 48 98 56T122 69T132 86V622Z"></path><path id="MJX-687-TEX-N-50" d="M130 622Q123 629 119 631T103 634T60 637H27V683H214Q237 683 276 683T331 684Q419 684 471 671T567 616Q624 563 624 489Q624 421 573 372T451 307Q429 302 328 301H234V181Q234 62 237 58Q245 47 304 46H337V0H326Q305 3 182 3Q47 3 38 0H27V46H60Q102 47 111 49T130 61V622ZM507 488Q507 514 506 528T500 564T483 597T450 620T397 635Q385 637 307 637H286Q237 637 234 628Q231 624 231 483V342H302H339Q390 342 423 349T481 382Q507 411 507 488Z"></path><path id="MJX-687-TEX-N-61" d="M137 305T115 305T78 320T63 359Q63 394 97 421T218 448Q291 448 336 416T396 340Q401 326 401 309T402 194V124Q402 76 407 58T428 40Q443 40 448 56T453 109V145H493V106Q492 66 490 59Q481 29 455 12T400 -6T353 12T329 54V58L327 55Q325 52 322 49T314 40T302 29T287 17T269 6T247 -2T221 -8T190 -11Q130 -11 82 20T34 107Q34 128 41 147T68 188T116 225T194 253T304 268H318V290Q318 324 312 340Q290 411 215 411Q197 411 181 410T156 406T148 403Q170 388 170 359Q170 334 154 320ZM126 106Q126 75 150 51T209 26Q247 26 276 49T315 109Q317 116 318 175Q318 233 317 233Q309 233 296 232T251 223T193 203T147 166T126 106Z"></path><path id="MJX-687-TEX-N-2C" d="M78 35T78 60T94 103T137 121Q165 121 187 96T210 8Q210 -27 201 -60T180 -117T154 -158T130 -185T117 -194Q113 -194 104 -185T95 -172Q95 -168 106 -156T131 -126T157 -76T173 -3V9L172 8Q170 7 167 6T161 3T152 1T140 0Q113 0 96 17Z"></path><path id="MJX-687-TEX-N-A0" d=""></path><path id="MJX-687-TEX-I-1D439" d="M48 1Q31 1 31 11Q31 13 34 25Q38 41 42 43T65 46Q92 46 125 49Q139 52 144 61Q146 66 215 342T285 622Q285 629 281 629Q273 632 228 634H197Q191 640 191 642T193 659Q197 676 203 680H742Q749 676 749 669Q749 664 736 557T722 447Q720 440 702 440H690Q683 445 683 453Q683 454 686 477T689 530Q689 560 682 579T663 610T626 626T575 633T503 634H480Q398 633 393 631Q388 629 386 623Q385 622 352 492L320 363H375Q378 363 398 363T426 364T448 367T472 374T489 386Q502 398 511 419T524 457T529 475Q532 480 548 480H560Q567 475 567 470Q567 467 536 339T502 207Q500 200 482 200H470Q463 206 463 212Q463 215 468 234T473 274Q473 303 453 310T364 317H309L277 190Q245 66 245 60Q245 46 334 46H359Q365 40 365 39T363 19Q359 6 353 0H336Q295 2 185 2Q120 2 86 2T48 1Z"></path><path id="MJX-687-TEX-N-35" d="M164 157Q164 133 148 117T109 101H102Q148 22 224 22Q294 22 326 82Q345 115 345 210Q345 313 318 349Q292 382 260 382H254Q176 382 136 314Q132 307 129 306T114 304Q97 304 95 310Q93 314 93 485V614Q93 664 98 664Q100 666 102 666Q103 666 123 658T178 642T253 634Q324 634 389 662Q397 666 402 666Q410 666 410 648V635Q328 538 205 538Q174 538 149 544L139 546V374Q158 388 169 396T205 412T256 420Q337 420 393 355T449 201Q449 109 385 44T229 -22Q148 -22 99 32T50 154Q50 178 61 192T84 210T107 214Q132 214 148 197T164 157Z"></path><path id="MJX-687-TEX-N-6B" d="M36 46H50Q89 46 97 60V68Q97 77 97 91T97 124T98 167T98 217T98 272T98 329Q98 366 98 407T98 482T98 542T97 586T97 603Q94 622 83 628T38 637H20V660Q20 683 22 683L32 684Q42 685 61 686T98 688Q115 689 135 690T165 693T176 694H179V463L180 233L240 287Q300 341 304 347Q310 356 310 364Q310 383 289 385H284V431H293Q308 428 412 428Q475 428 484 431H489V385H476Q407 380 360 341Q286 278 286 274Q286 273 349 181T420 79Q434 60 451 53T500 46H511V0H505Q496 3 418 3Q322 3 307 0H299V46H306Q330 48 330 65Q330 72 326 79Q323 84 276 153T228 222L176 176V120V84Q176 65 178 59T189 49Q210 46 238 46H254V0H246Q231 3 137 3T28 0H20V46H36Z"></path><path id="MJX-687-TEX-N-4E" d="M42 46Q74 48 94 56T118 69T128 86V634H124Q114 637 52 637H25V683H232L235 680Q237 679 322 554T493 303L578 178V598Q572 608 568 613T544 627T492 637H475V683H483Q498 680 600 680Q706 680 715 683H724V637H707Q634 633 622 598L621 302V6L614 0H600Q585 0 582 3T481 150T282 443T171 605V345L172 86Q183 50 257 46H274V0H265Q250 3 150 3Q48 3 33 0H25V46H42Z"></path></defs><g stroke="currentColor" fill="currentColor" stroke-width="0" transform="scale(1,-1)"><g data-mml-node="math"><g data-mml-node="mi"><use data-c="1D438" xlink:href="#MJX-687-TEX-I-1D438"></use></g><g data-mml-node="mo" transform="translate(1041.8,0)"><use data-c="3D" xlink:href="#MJX-687-TEX-N-3D"></use></g><g data-mml-node="mn" transform="translate(2097.6,0)"><use data-c="32" xlink:href="#MJX-687-TEX-N-32"></use><use data-c="31" xlink:href="#MJX-687-TEX-N-31" transform="translate(500,0)"></use><use data-c="30" xlink:href="#MJX-687-TEX-N-30" transform="translate(1000,0)"></use><use data-c="30" xlink:href="#MJX-687-TEX-N-30" transform="translate(1500,0)"></use><use data-c="30" xlink:href="#MJX-687-TEX-N-30" transform="translate(2000,0)"></use><use data-c="30" xlink:href="#MJX-687-TEX-N-30" transform="translate(2500,0)"></use></g><g data-mml-node="TeXAtom" data-mjx-texclass="ORD" transform="translate(5097.6,0)"><g data-mml-node="mi"><use data-c="4D" xlink:href="#MJX-687-TEX-N-4D"></use><use data-c="50" xlink:href="#MJX-687-TEX-N-50" transform="translate(917,0)"></use><use data-c="61" xlink:href="#MJX-687-TEX-N-61" transform="translate(1598,0)"></use></g></g><g data-mml-node="mo" transform="translate(7195.6,0)"><use data-c="2C" xlink:href="#MJX-687-TEX-N-2C"></use></g><g data-mml-node="mtext" transform="translate(7640.2,0)"><use data-c="A0" xlink:href="#MJX-687-TEX-N-A0"></use></g><g data-mml-node="mi" transform="translate(7890.2,0)"><use data-c="1D439" xlink:href="#MJX-687-TEX-I-1D439"></use></g><g data-mml-node="mo" transform="translate(8917,0)"><use data-c="3D" xlink:href="#MJX-687-TEX-N-3D"></use></g><g data-mml-node="mn" transform="translate(9972.8,0)"><use data-c="35" xlink:href="#MJX-687-TEX-N-35"></use></g><g data-mml-node="TeXAtom" data-mjx-texclass="ORD" transform="translate(10472.8,0)"><g data-mml-node="mi"><use data-c="6B" xlink:href="#MJX-687-TEX-N-6B"></use><use data-c="4E" xlink:href="#MJX-687-TEX-N-4E" transform="translate(528,0)"></use></g></g></g></g></svg></mjx-container></p>

Dies ist eine interaktive Aufgabe zu: Biegelinie mit praktischen Tipps zum Lösen und einer Zusammenfassung der nötigen Theorie

Aufgabenstellung:

Lösungsweg:

Lösung:
